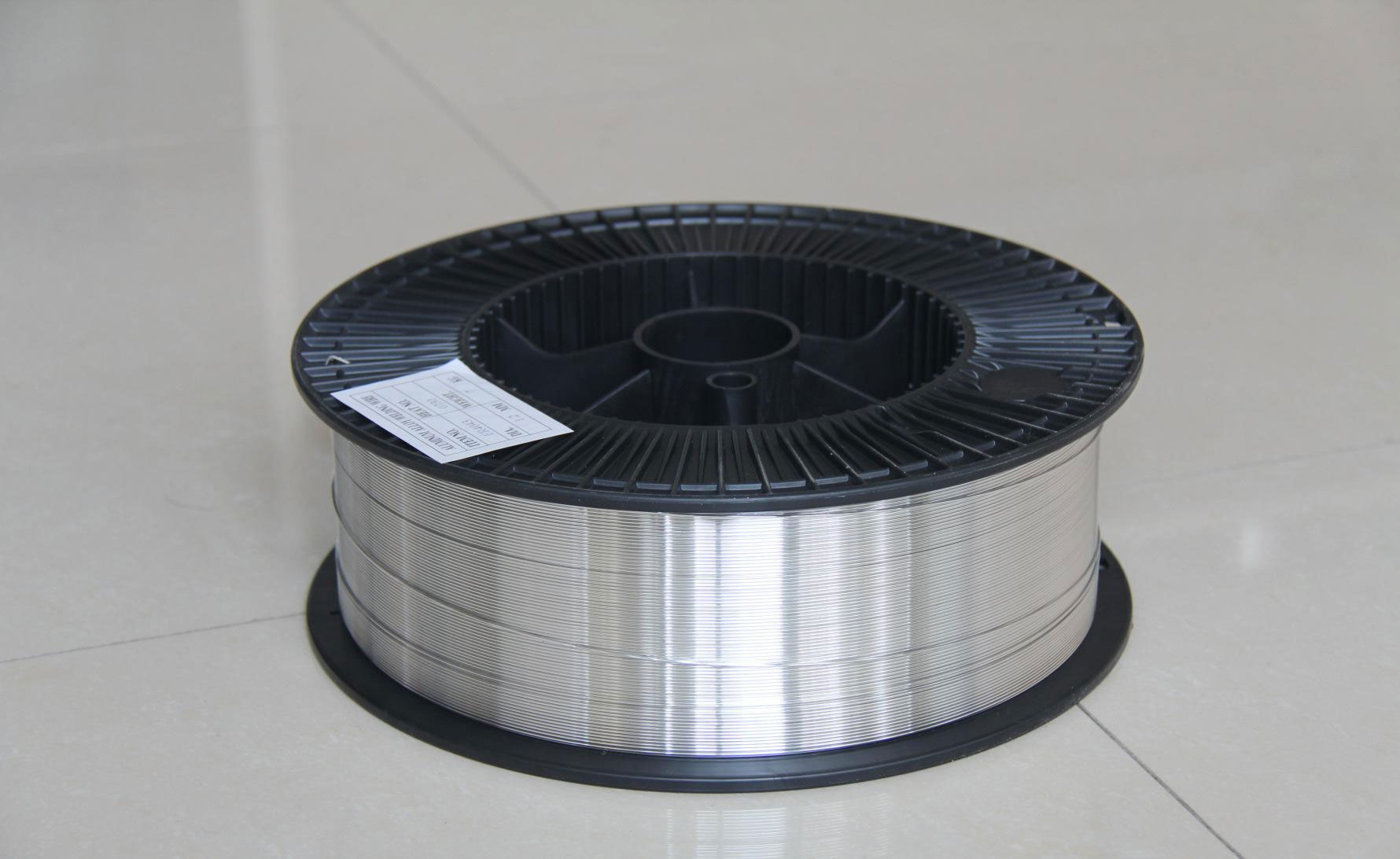

Standardization:Numberical Symbol: AWS 5.10 ER5183 ASME SFA 5.10 UNS A95183 AWS Chemical Composition:% Si0.40 Fe0.40 Cu0.10 Mn0.5-1.0 Mg4.3-5.2 Cr0.05-0.25 Zn0.25 Ti0.15 Albal. other each0.05 Total others0.15 Standard values of the weld metal: Elongation %8 Tensile strength MPa187 Yield strength MPa125 Applications: Alloy 5183 was originally developed in 1957 to provid the highest strengths possibie in…

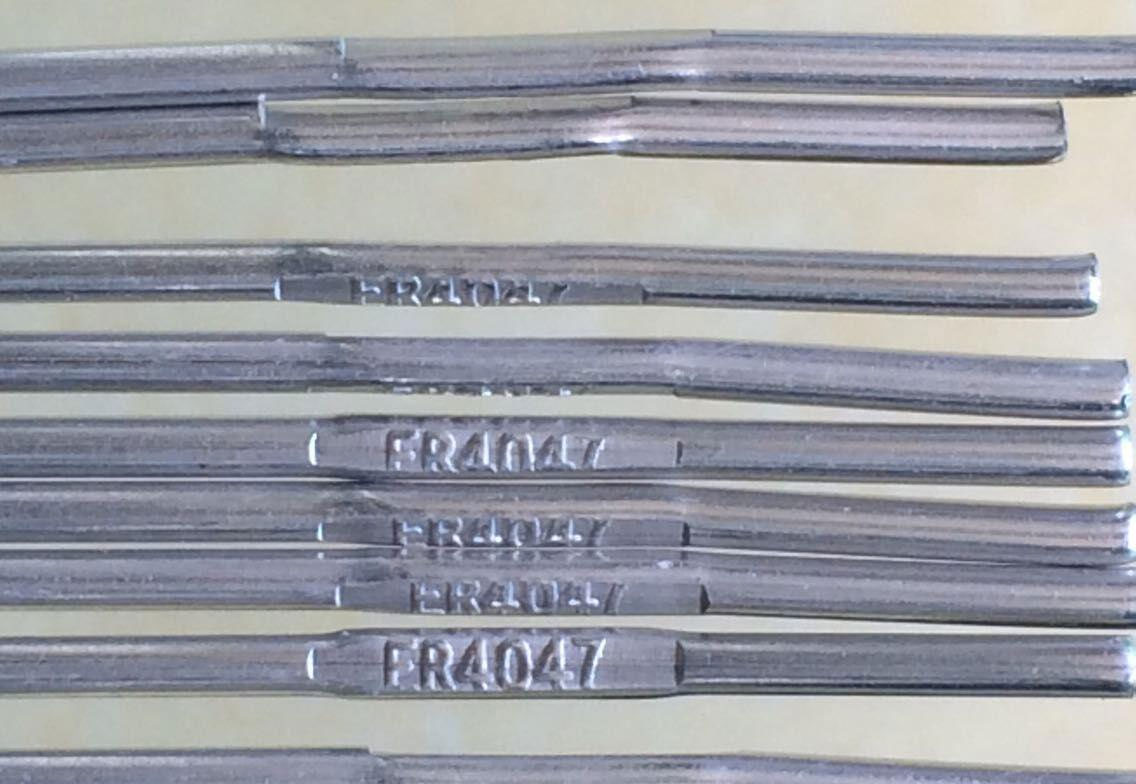

Standardization:Numberical Symbol: AWS 5.10 ER4047 ASME SFA 5.10 UNS A94047 AWS Chemical Composition:% Si11-13 Fe0.80 Cu0.30 Mn0.15 Mg0.10 Zn0.20 Albal. other each0.05 Total others0.15 Standard values of the weld metal: Elongation %8 Tensile strength MPa187 Yield strength MPa125 Applications: Alloy 4047 was originally developed as a brazing alloy (BAIAi-4) or (718) to take advantage of…

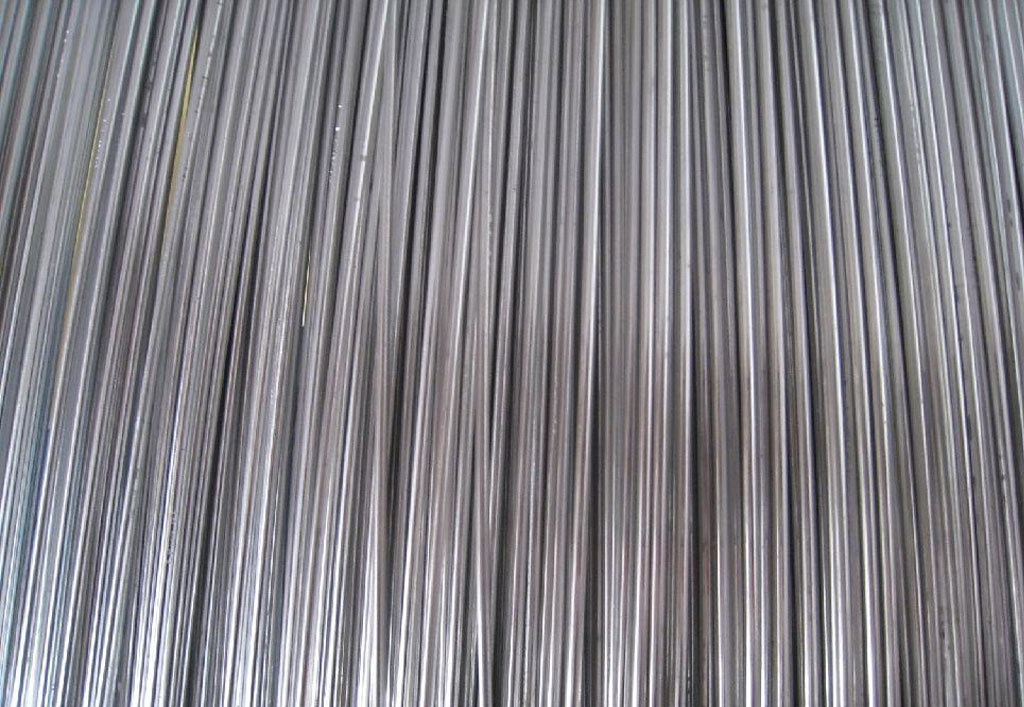

Standardization:Numberical Symbol: AWS 5.10 ER4043 ASME SFA 5.10 UNS A94043 AWS Chemical Composition:% Si4.5-6.0 Fe0.80 Cu0.30 Mn0.05 Mg0.05 Zn0.10 Ti0.20 Albal. other each0.05 Total others0.15 Standard values of the weld metal: Elongation %8 Tensile strength MPa187 Yield strength MPa125 Applications: Alloy 4043 is one if the oldest and most widely used welding and brazing alloys.…

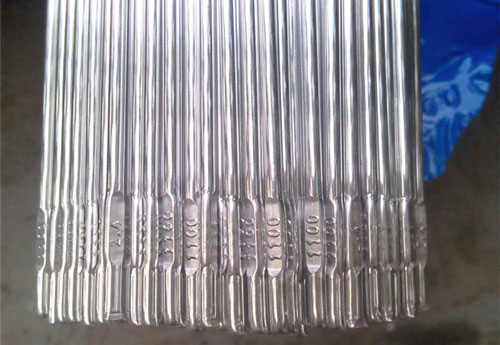

Standardization:Numberical Symbol: AWS 5.10 ER1100 ASME SFA 5.10 UNS A91100 AWS Chemical Composition:% Si&Fe0.95 Al≥99 Cu0.05-0.20 Mn0.05 Zn0.10 other each0.05 Total others0.15 Standard values of the weld metal: Elongation %8 Tensile strength MPa187 Yield strength MPa125 Applications: Alloy 1100 is highly resistant to chemical attack and weathering. It is a relatively soft alloy that is…
Standardization:Numberical Symbol: AWS 5.10 ER1060 ASME SFA 5.10 UNS A91060 AWS Chemical Composition:% Si0.25 Fe0.35 Cu0.05 Mn0.03 Mg0.03 Zn0.05 Ti0.03 Al≥99.6 Total others0.03 Standard values of the weld metal: Elongation %8 Tensile strength MPa187 Yield strength MPa125 Applications: Excellent corrosion resistance, high thermal and electrical conductivity, and excellent workability, the material is anodized, ideal color…
Standardization:Numberical Symbol: AWS A5.6:2008 ECuMnNiAl AWS Chemical Composition:% Cubal. Mn11.0-14.0 Si1.50 Ni1.5-3.0 Pb0.02 Fe2.0-4.0 Al6.0-8.5 Total others0.50 Applications: High tensile strength and hardness.
Standardization:Numberical Symbol: AWS A5.6:2008 ECuNiAl AWS Chemical Composition:% Cubal. Mn0.50-3.5 Si1.50 Ni4.0-6.0 Pb0.02 Fe3.0-6.0 Al8.0-9.5 Total others0.50 Applications: Great wear resistance and corrosion resistance.
Standardization:Numberical Symbol: AWS A5.6:2008 ECuNiAl AWS Chemical Composition:% Cubal. Mn0.50-3.5 Si1.50 Ni4.0-6.0 Pb0.02 Fe3.0-6.0 Al8.0-9.5 Total others0.50 Applications: Great wear resistance and corrosion resistance.
Standardization:Numberical Symbol: AWS A5.6:2008 ECuAl-B AWS Chemical Composition:% Cubal. Al9.5-11.5 Fe2.5-5.0 Si1.50 Pb0.02 Total others0.50 Applications: High Strength, corrosion resistance, used for copper base alloys such as aluminum bronze and steel welding, surfacing and repair welding.
Standardization:Numberical Symbol: AWS A5.6:2008 ECuAl-A2 AWS Chemical Composition:% Cubal. Al6.5-9.5 Fe0.50-5.0 Si1.50 Pb0.02 Total others0.50 Applications: Good corrosion resisitance, used for copper base alloys such as aluminum bronze and steel welding, surfacing and repair welding.
